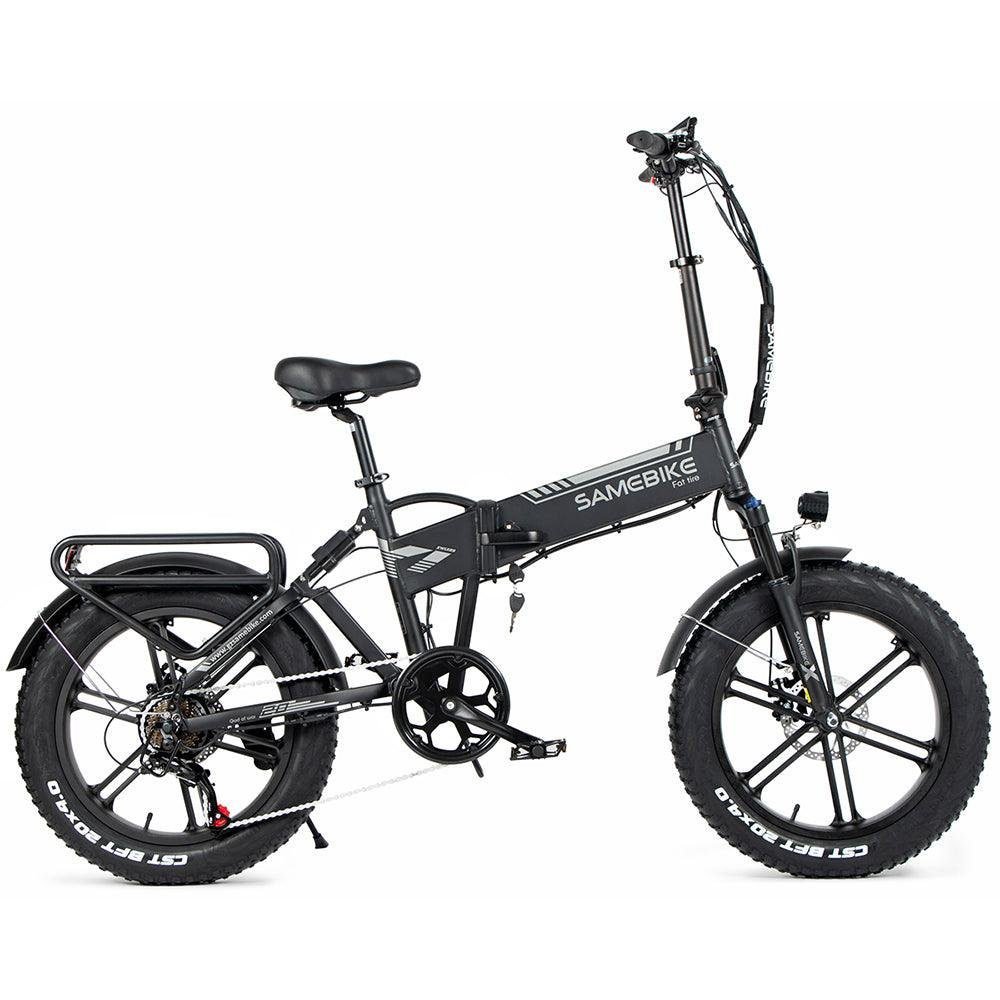

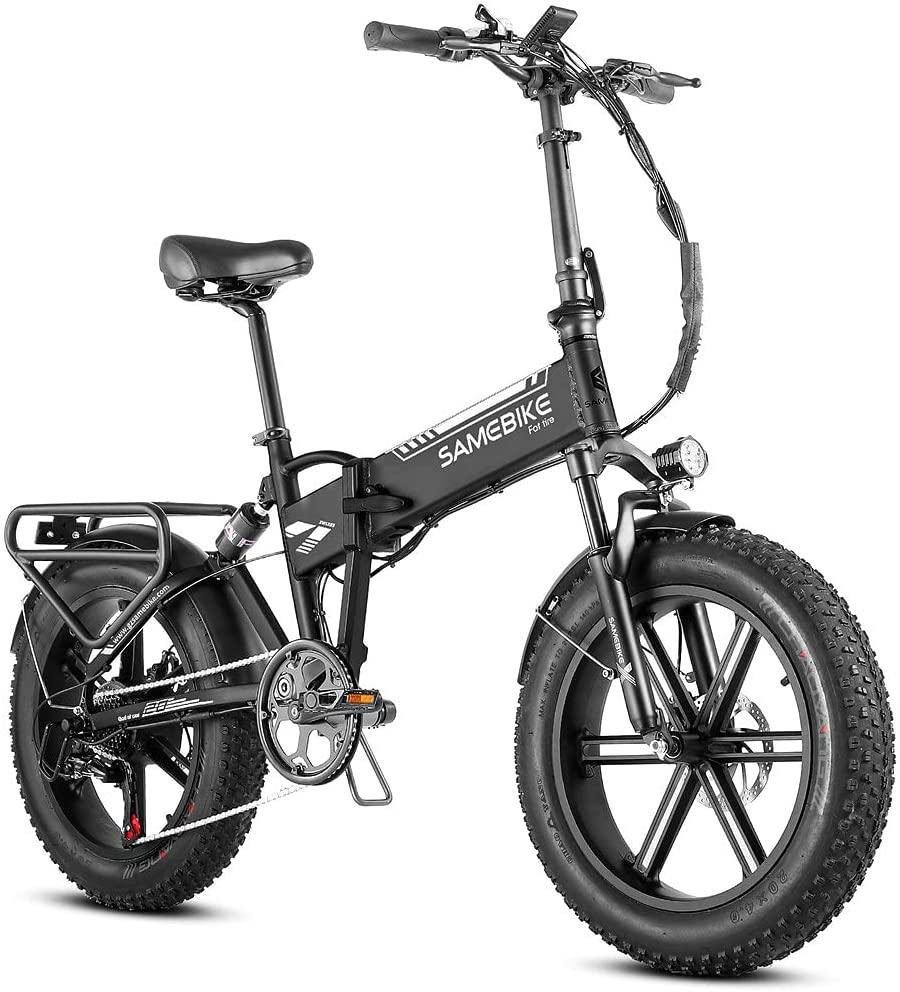

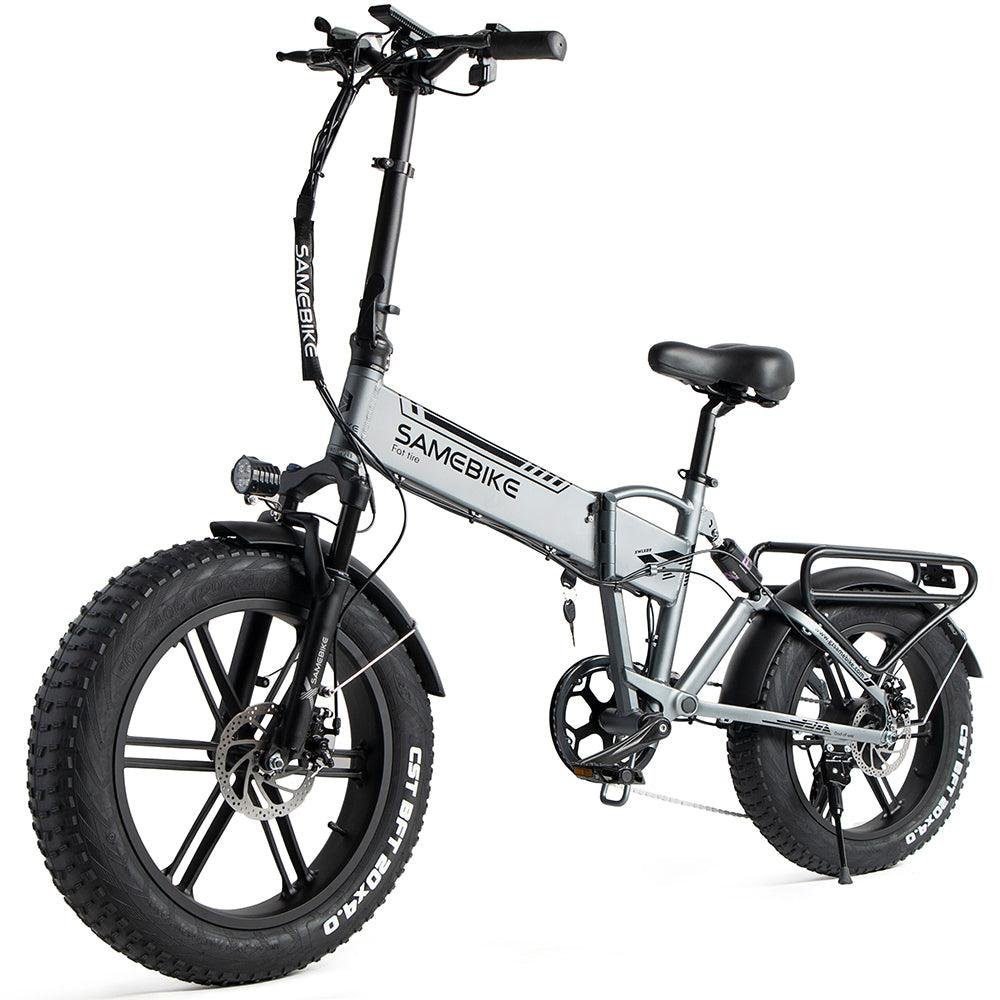

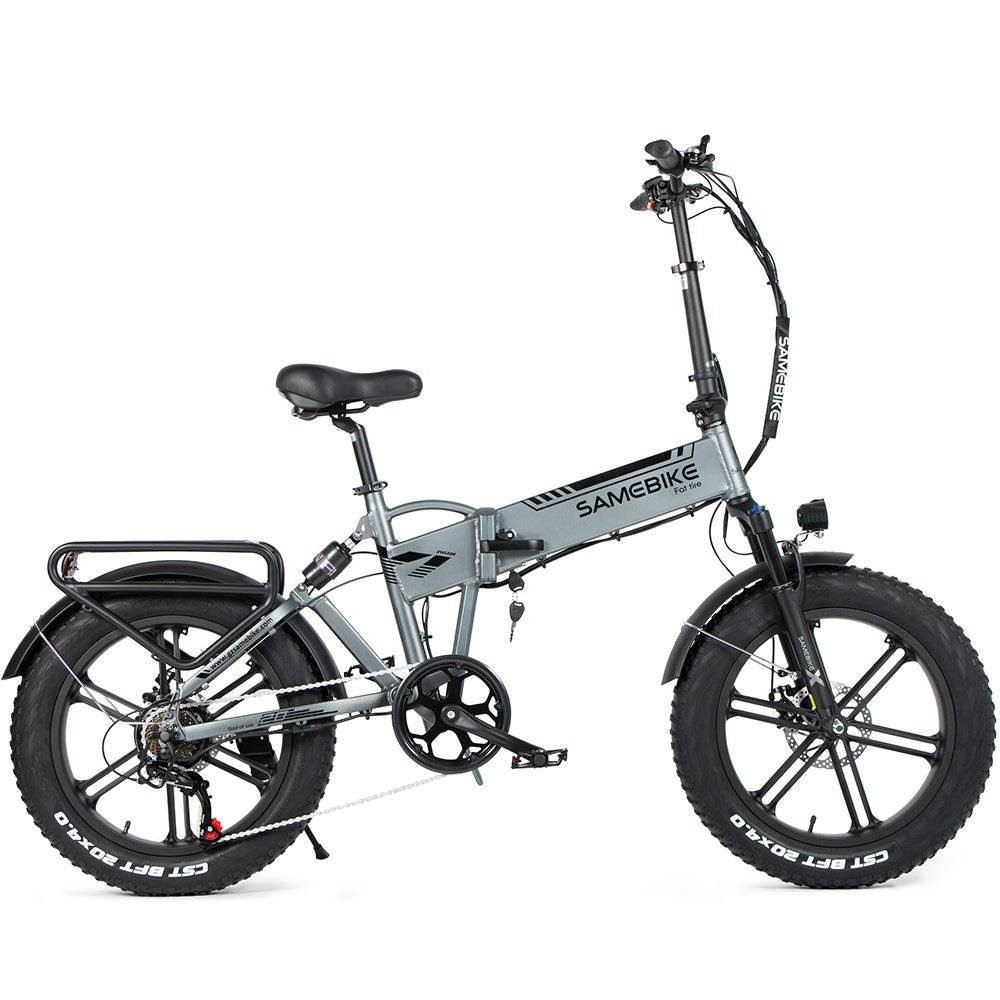

Samebike XWLX09 Fat Tire Electric Bike

• Three modes: pure electricity, power, manpower

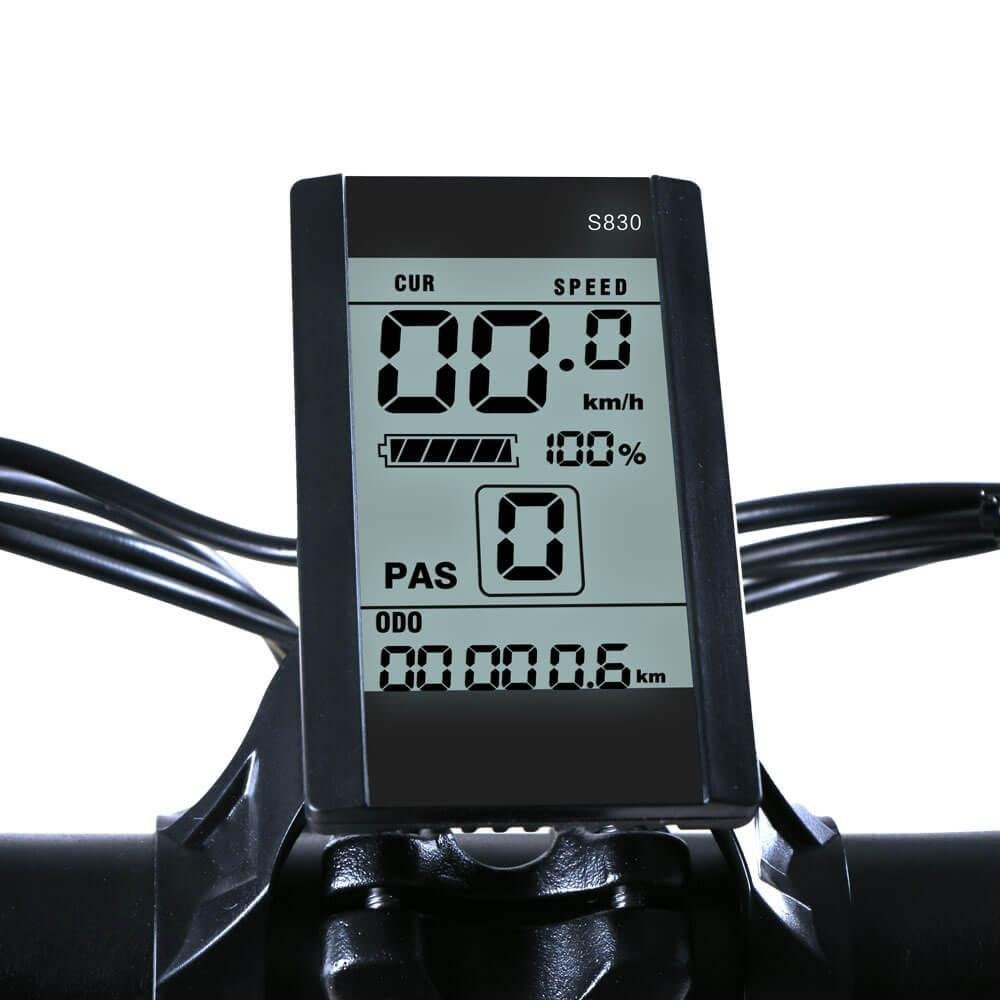

• LCD LCD display instrument, 5 levels of electric/power-assisted adjustment, mileage, speed, power, headlight control, implementation mode function, fault diagnosis function
• Aluminum alloy detachable battery box, which can be charged directly from the car or taken out for charging
• Brushless Hall high power controller, intelligent power assist system
• Aviation grade 6061 aluminum alloy full suspension folding frame
• super light, cool, twelve knife magnesium alloy integrated wheel
• ED titanium fat tires with locking function widen the front fork and switch freely
• 750 pound spiral ED seal adjustable shock absorber
• SHIMANO Shimano 7-level complete transmission system
• Silver anti-rust, silent, advanced chain

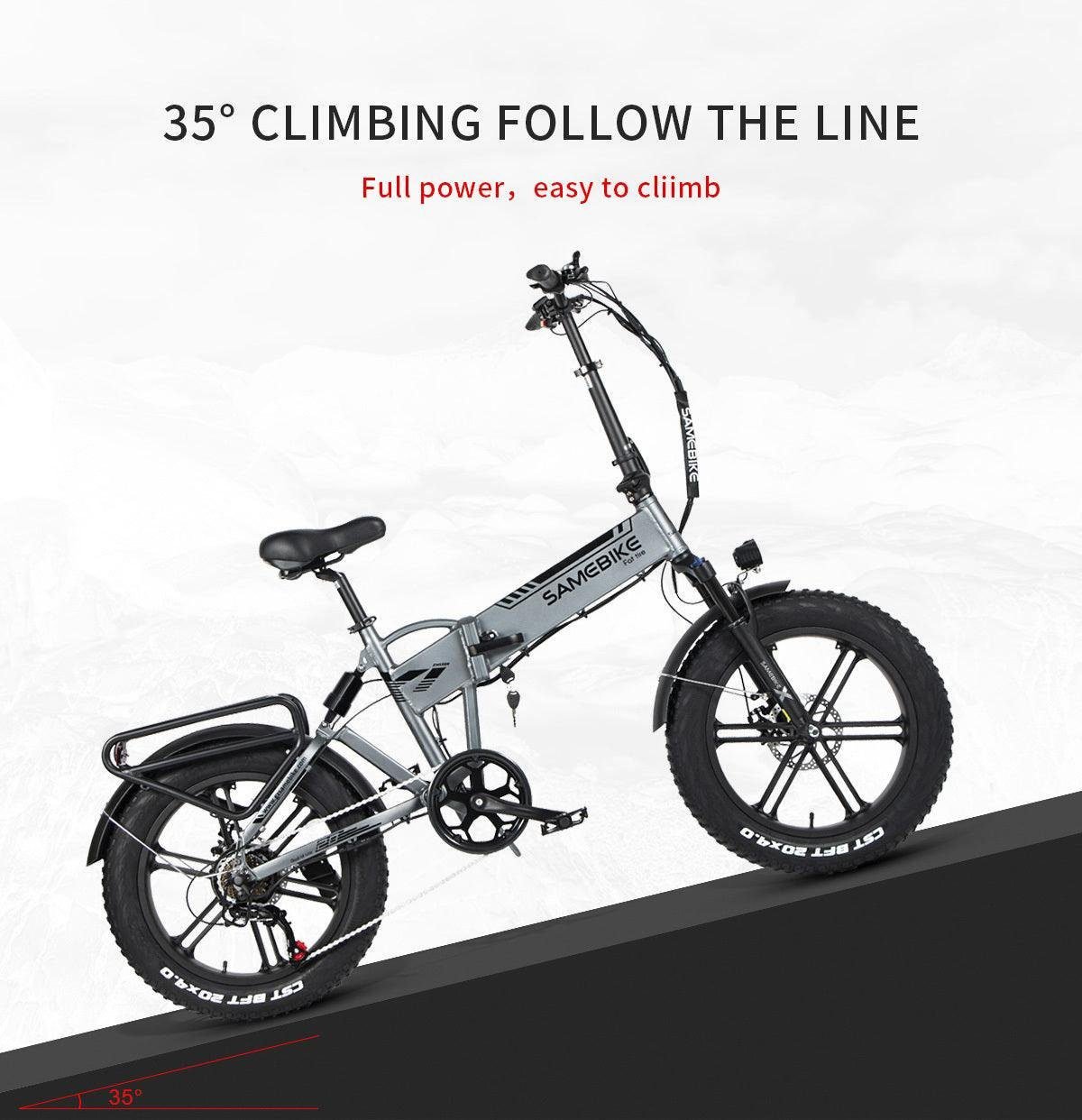

• 750W high-speed high-power fat tire motor, strong power, climbing ability up to 35 degrees
• Super wear-resistant 160 widened copper-based mechanical disc brake friction plate, brake performance improved
• CTS wear-resistant 20-inch X4.0 widened snow fat tires, strong grip ability, comfortable riding, cope with rough roads
• The vehicle wiring harness adopts a quick-release waterproof connector, which is convenient for after-sales, modification and upgrade.

SPECIFICATION

Color: Black / Grey (optional)
Material: 6061Aluminum alloy
Max speed: 32km/h
Pure Electric Range: 35-45km
Power Assistance Range: 80-90km
Max. Load: 150kg
Derailleur: Shimano 7 Speed
Motor power: 750W high speed brushless gear motor
Battery: 48V 10AH 2500mah lithium batter
Charging Time: About 4-6 hours
Work temperature: -10℃ – 40℃
Max gradient: 35°

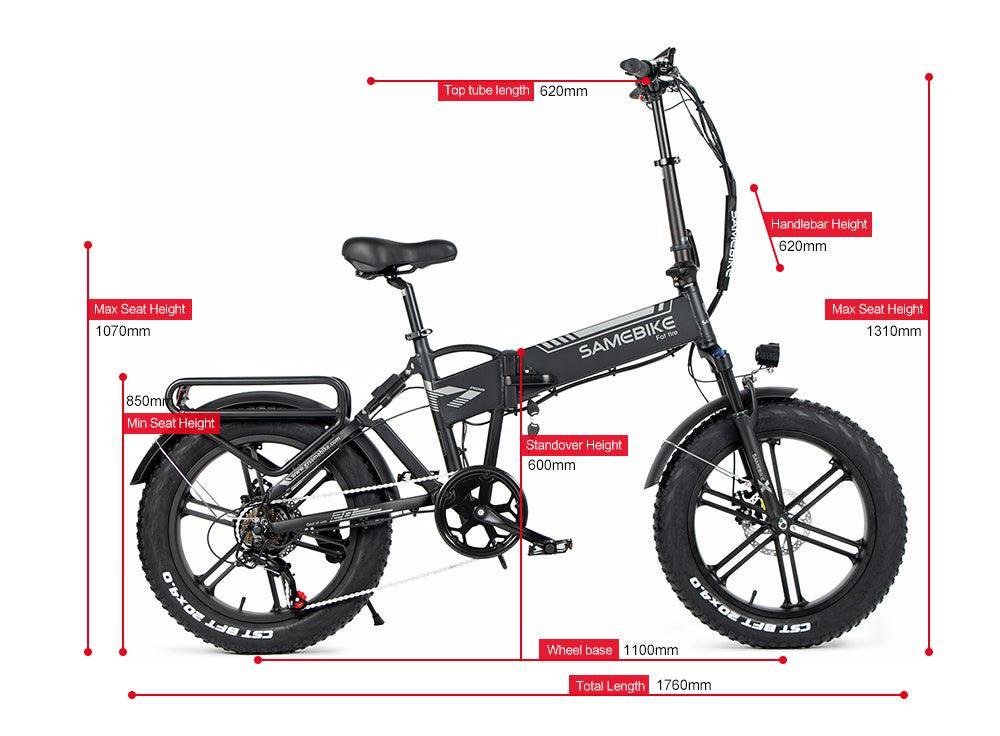

Adjustable seat height: 107-120cm/42.1-47.2in
Tire: 20*4.0 inches

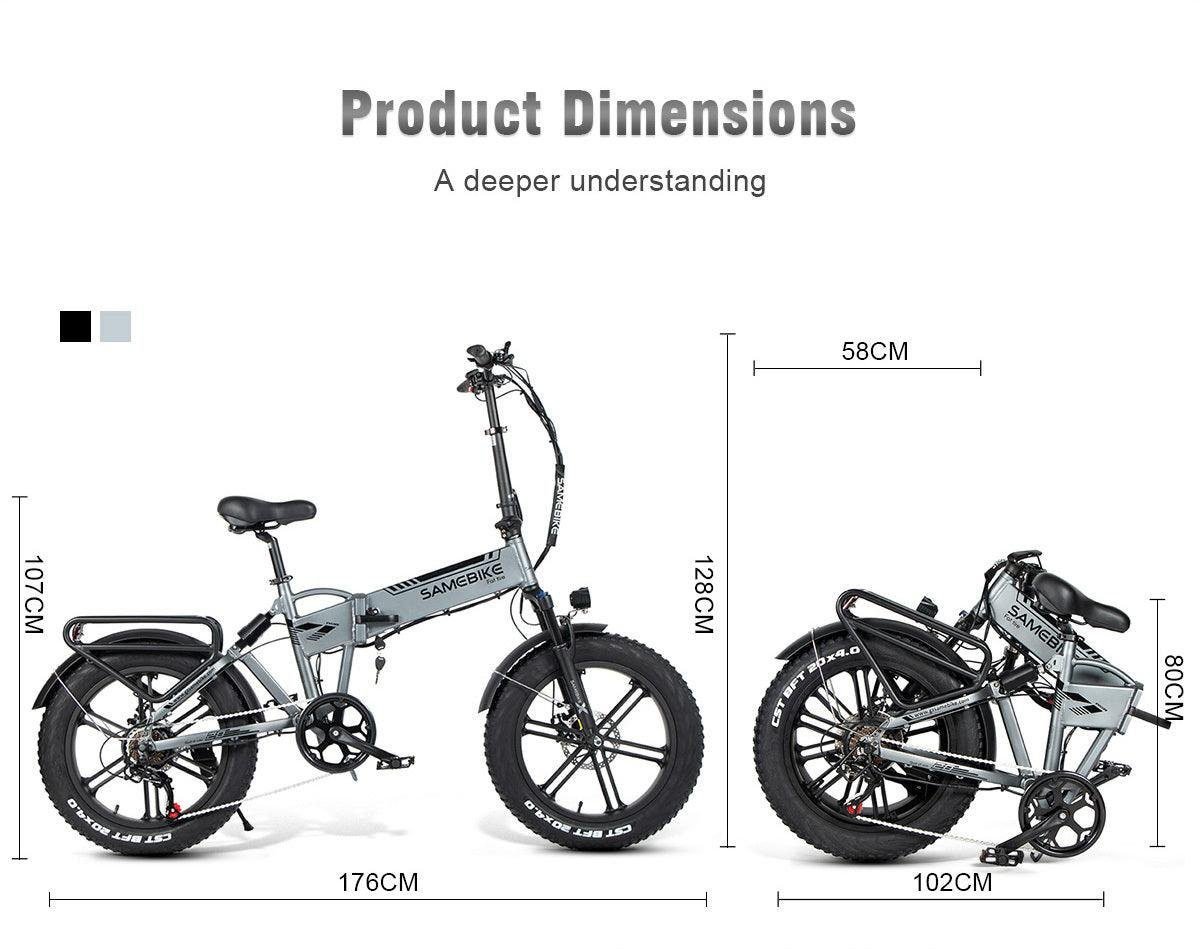

Overall dimension: 176 * 58 * 128cm/69.3 * 22.8 * 50.4in

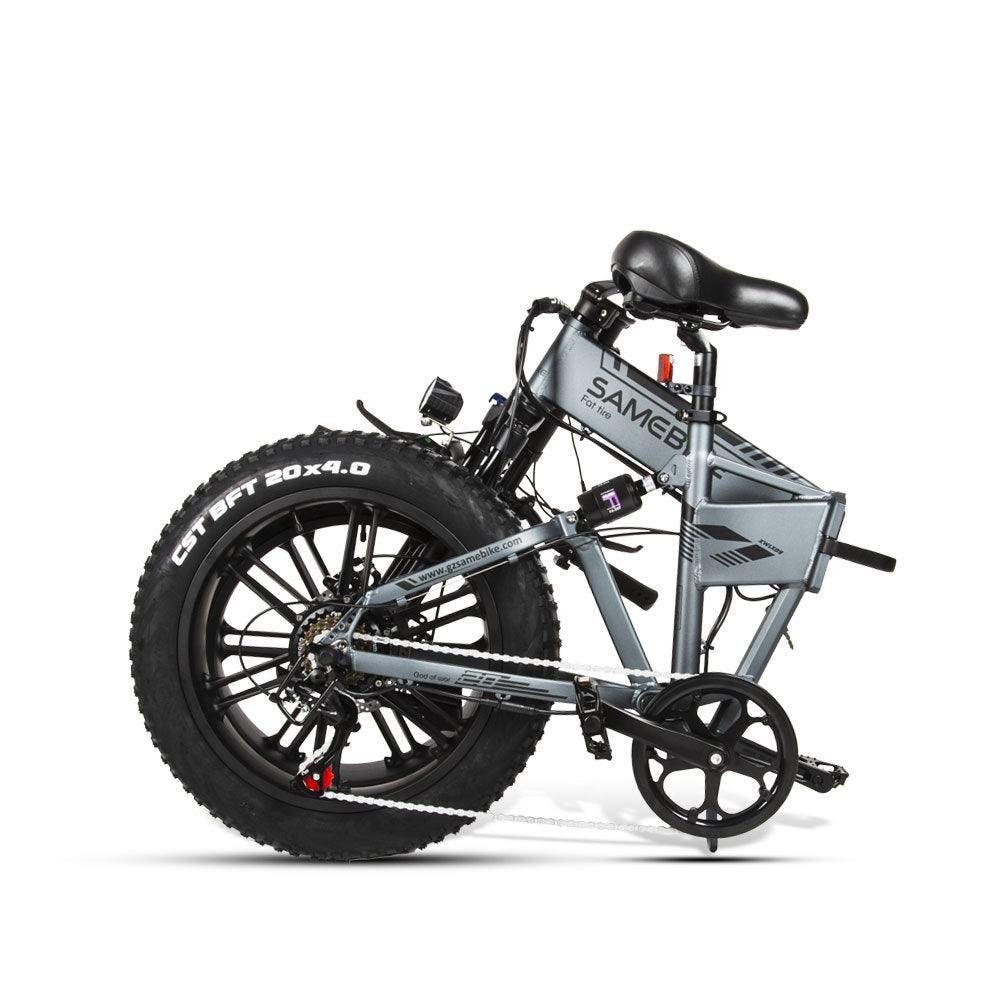

Folded dimension: 102 * 56 * 80cm/40.2 * 22.0 * 31.5in
Weight: Approx. 28kg / 61.7lbs
Package weight: Approx. 33kg / 72.8lbs
Package size: 145 * 28 * 66cm/ 57.1 * 11.0 * 26.0in
